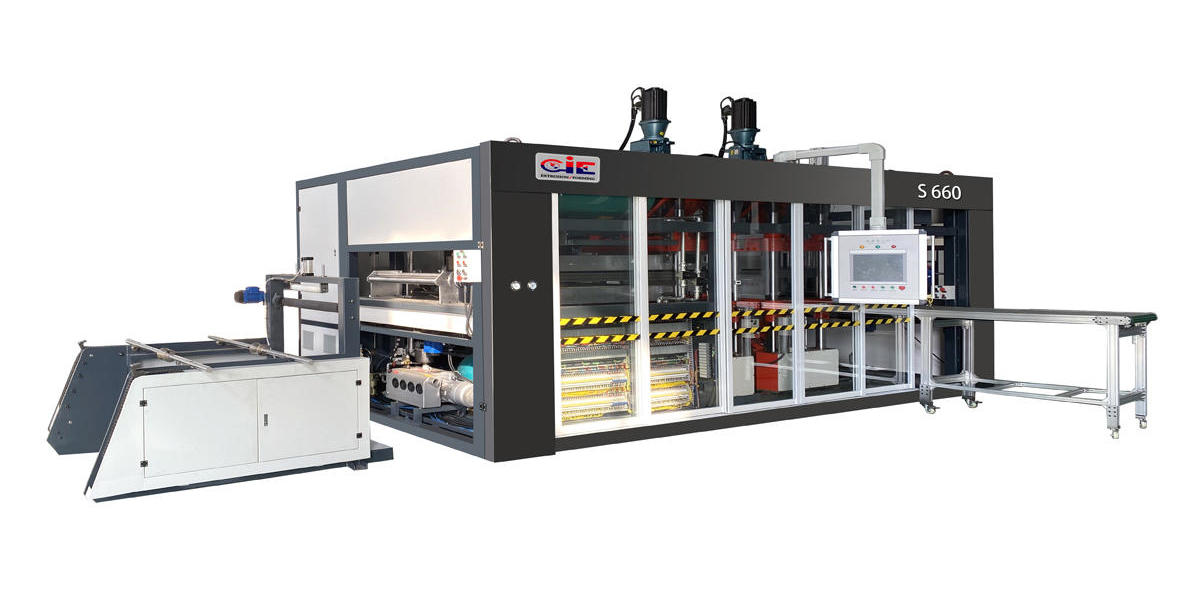

CIE-660 Plastic Vaccum Forming Machine

  • CIE-660 Plastic Vaccum Forming Machine
  • CIE-660 Plastic Vaccum Forming Machine
  • CIE-660 Plastic Vaccum Forming Machine
  • CIE-660 Plastic Vaccum Forming Machine

CIE-660 Plastic Vaccum Forming Machine

    Unit Price: 120000~500000 USD
    Min. Order: 1 Set/Sets
    Transportation: Ocean
    Supply Ability: 10 lines per month
    Port: Shanghai

Basic Info

Model No.: CIE-660

Product Description


CIE-S660 automatic three-station thermoforming machine
forming machine

Company Profile:


CIE is an innovative technology company that has been committed to the exploration and innovation of plastic extruders and thermoforming machines in the fields of research and development, design, manufacturing, sales, and after-sales service. Aiming to provide customers with excellent overall solutions for the blister packaging industry, CIE has introduced advanced molding machine technology from Germany, Italy, and combined with its own years of R&D, manufacturing and application cases to continuously create high-end and efficient equipment for customers. It has been exported to many countries in the world and won unanimous praise from customers.

We work hard:

CIE has an elite R&D team. Its core members have more than 10 years of product development and design experience in related industries, and can provide customers with mature and stable overall solutions in thermoforming technology, equipment and molds. Over the years, they have served many world-renowned companies.

Our professional focus:

The CIE market operations team has been focusing on the promotion and application of plastic extrusion equipment and thermoforming automation equipment for many years. It has experience in the market expansion of international automation equipment companies and KNOW-HOW in many mainstream application industries. It has excellent capabilities and Experience enables us to more accurately grasp market trends and meet the diverse needs of customers.

We advocate technology:

We are people-oriented, truth-seeking and pragmatic, and strive for perfection. We have a complete quality control system. We adopt strict testing standards for each component of the product to ensure the overall quality of the equipment. We strive to build cutting-edge equipment in the industry and create value for customers.

Product introduction:

CIE-S660 automatic three-station thermoforming machine

Introduction

1. Automated production-comprehensively integrate complex production processes and efficiently produce.

2. Unwinding unit-pre-heating unit-forming unit-vertical punching unit-stacking unit-waste recycling unit-punching cutting stacking three-in-one horizontal punching unit.

Electric Condition:

380V/50Hz/3 Phase

Forming Material:

PP.PET.PS.PLA.HIPS.PE.HDPE.PC.ABS.PVC.PC


Application:

Plastic blister packaging products

Machinecal thickness: Upper and bottom mold ( 3 stage furnace)
Forming Thickness: 0.10-2.5MM
Total power/Actual power consumption:

Heating oven Max.93KW. usually use 35-50KW/h

Air Pressure: 0.7 MPA
Water conditions:
Ordinary tap water recycle
Noise: The noise of this equipment meets the national standard not higher than 75DB
Maximum power of the whole machine:
105KW
Max:
60T
Forming area: 660MM
Material width:

<=675MM

Forming length:
500MM
Forming depth:(Male mould) 120MM
Forming depth:(Female mould) 100MM
Max.Capacity: (ldle running)

25-35 stroke/minute(Depending on material and thickness)


Machine size:

L10000MM*W2600MM*H2580MM

Machine Weight:

12T


Machine description-feeding unit

A. This machine adopts integrated gas and electricity loading system.

B. Stainless steel pressure roller and automatic feeding (single roll material

weight can reach 600-1000KG)

C. The pre-heating device is installed on both sides of the film .

D. There are multiple excessive rollers to ensure that the material will

not

running when stretching the sheet.

E. The heating furnace has forward and backward functions. It uses

photoelectric

eyes to detect the sag of the sheet after heating. When it exceeds a certain

limit, it provides an alarm and has function of Exit the heating furnace to

prevent the sheet from falling out of the heating furnace and causing fire.

G. Independently developed clip sheet device.


Complete equipment description – forming and Punching station device


A. The upper and lower mold parts of this machine are all casting structure,

which are durable.

B. The plane accuracy of the mold table reaches (± 0.005MM)

C. Ensure that the flatness error of the knife mold clamping is small, and the

high-speed movement does not hurt the knife edge.

D. This station can be equipped with hardware punching molds.

E. This machine has an automatic mold clamping device, which makes loading

and unloading convenient and quick.

F. The time and cooperation of the upper and lower mold tables can

be adjusted separately to ensure that the die is not damaged during

punching and shearing.

G. The lower base of the punching and shearing station is equipped with

(Taiwan linear rail). The mold position can be moved electrically to facilitate

the loading and unloading of the forming mold and the punching and

shearing alignment.

H. The upper and lower mold sets are equipped with a manual die adjustment

device, which is convenient for punching and cutting the upper and lower dies

and the alignment.

I. The design of the upper mold table has a lifting function, which is driven by a

motor to drive the chain wheel, which is convenient for adjusting the lifting.

You can directly set the height of the mold table, which makes it easier to

adjust the cutting depth. Maximum adjustment range: 130mm

J. The machine is equipped with an automatic mold locking device, which is

convenient to

load and unload the mold.

k. Guide pillar with automatic locking device for moulding mold adjustment

L. The chain rail can be automatically raised and downed to a height of 200MM, which facilitates the overlapping installation of the upper and lower molds.

A. Rotating robot arm with 3 servo motors

B. The number and height of product stacks can be set automatically in the PLC interface

C. The robot arm at this station can rotate 360 ° and can be stacked in AB sections.

D. Grab speed can reach 50 times per minute

Machine Description-Stacking Station Device


A. Rotating robot arm with 3 servo motors

B. The number and height of product stacks can be set automatically in the PLC interface

C. The robot arm at this station can rotate 360 ° and can be stacked in AB sections.

D. Grab speed can reach 50 times per minute.
